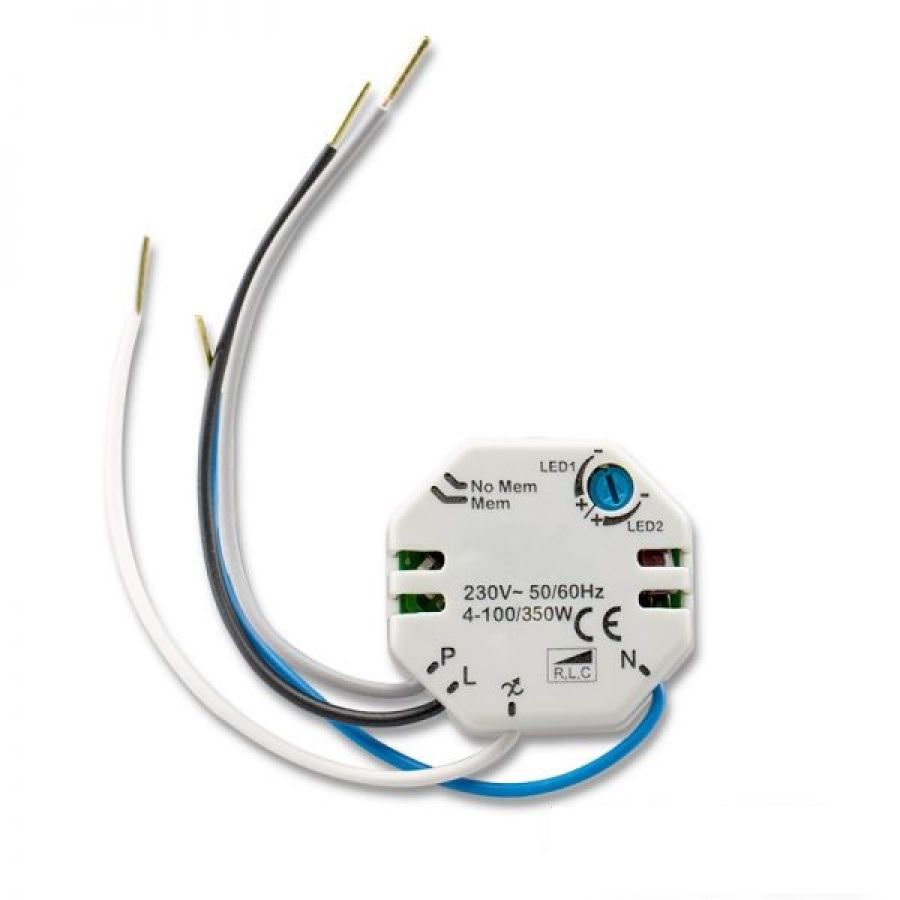

Flush mounted universal dimmer switch suitable for dimmable LED lamps
Description:

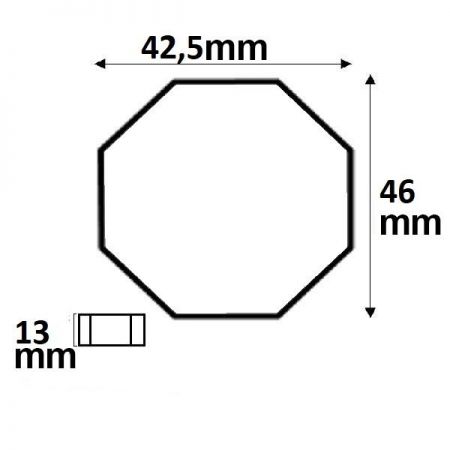

- Compact push-dimmer for flush mounting
- Protected against short circuit, overload and overheating
- Usable and controllable with standard flush-mounted switches
- Rotary switch for setting the minimum dimming level (min. light level %) - lower dimming range can be limited
- Two function modes (with or without memory function) - last set dimming level is retained (selectable via Mem/No Mem)
Special features:

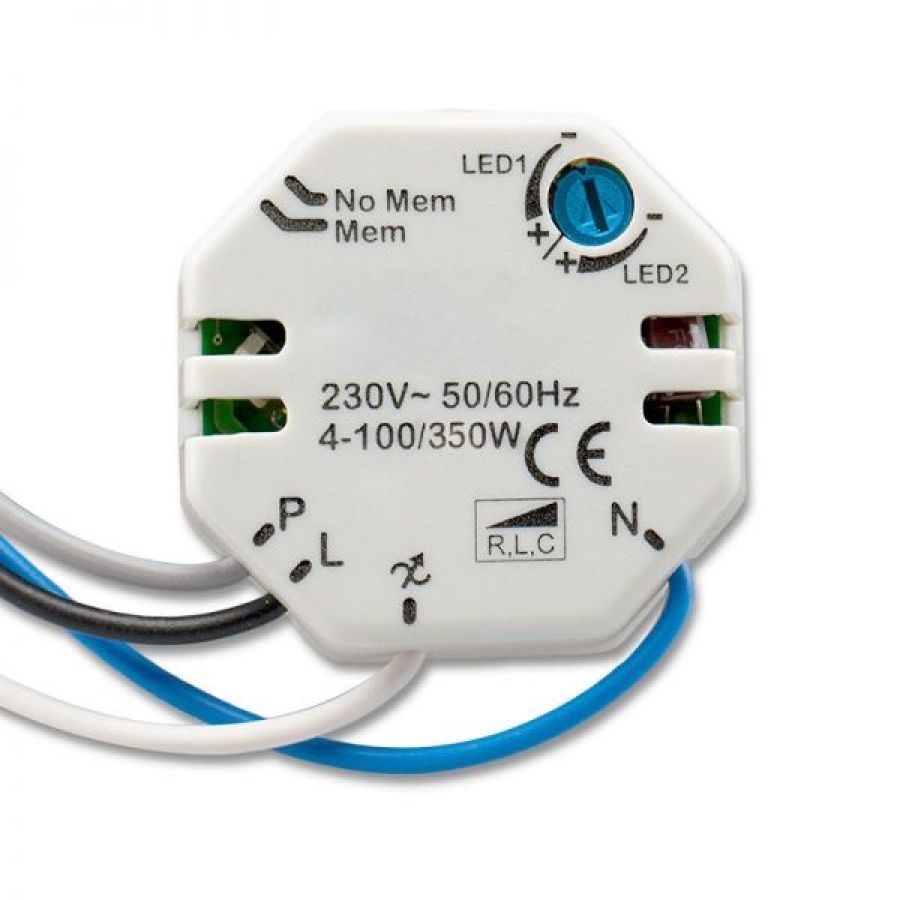

With rotary switch for setting the connected lamp load (LED1 or LED2):
- Mode LED1 (leading phase angle) for dimmable 230V LED lamps with minimum load 4Watt / maximum load 100W.
- Mode LED2 (trailing phase angle) for dimmable 12V LED lamps with a transformer for phase cut without minimum load / maximum load 300W
Do not mix capacitive and inductive loads, no secondary load disconnection allowed, maximum power should only be used up to 90%.
